Smart Fly Micro-12G Power Expander

Smart Fly Micro-12G Power Expander

SKU:
PE-8.12G
$183.00
(No reviews yet)
Weight:
2.00 LBS
Width:
20.00 (cm)
Height:
10.00 (cm)
Depth:
5.00 (cm)
Current Stock:

Out of stock

Out of Stock
Description

The PowerExpander Micro-12G is designed for use with any standard receiver. The unit has twelve pitails that plug into receivers with up to twelve channels. Two of the Micro-12G channels have two ouptuts (1&12) and the other ten channels have a single output each. This tiny unit has most of the features of our larger PowerExpanders with the exception of multiple servo outputs per channel. It has a built in BatShare, receiver and servo signal line filtering, amplification of the servo signal to 5V and can be used with an optional failsafe switch. For detailed information please see the user manual link.

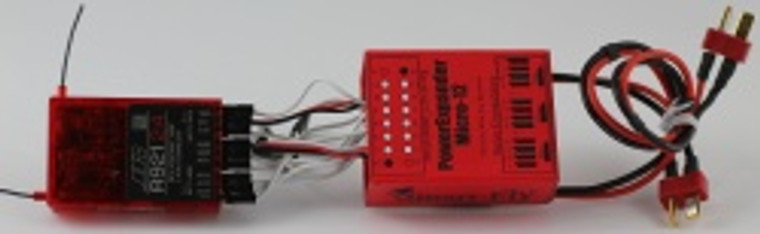

Micro-12G with R6108SB
  • For use with any standard receiver
  • Two channels with two servo outputs
  • Ten channels with single servo output
  • Compatible with battery packs up to 8.5V
  • Provides full battery pack voltage to servos
  • Built-in BatShare for battery input  protection
  • Inputs protect against cell failure or power   shorts
  • Filtered and regulated 5.0V power to  receiver
  • Dual regulators for receiver
  • Full RF filtering of all signals in  and out of unit
  • Fully buffered outputs on all channels
  • Servo signal lines boosted to 5V
  • Long servo lead line matching
  • Operates with optional Failsafe-switch
  • Light weight, 1.3oz, 37g
  • Compact design, footprint is 2.0” x 1.5”
